RØDE Capture
RØDE Capture is an intuitive video app with unique creative features that unlock the full potential of your RØDE microphone for capturing professional video and audio.
Learn everything you need to know about RØDE Capture here.
Features
1Toolbox
2Framerate Settings
3Recording Resolution
4Aspect Ratio
5Audio Level Meter
6Microphone Menu
7Record Timer
8Zoom Level
9Swap Camera
10Dual Camera Menu
11Record Button
12Camera Roll
Viewfinder Screen
The RØDE Capture viewfinder screen features the video preview at its centre, allowing you to tap on a point in your frame to focus on it and automatically adjust brightness and exposure settings, just like your phone's default camera app. You can also pinch to zoom or use the ‘0.5x’, ‘1x’, ‘2x’ and ‘3x’ controls to quickly jump to a preset zoom level.
Certain models of iPhone and iPad may not support the full zoom range.
Swap Camera
You can switch between your phone’s primary camera and its selfie camera using the swap camera button (indicated by the pair of clockwise arrows).
Recording
Tap the big red record button to begin your recording and tap it again to end it, automatically saving your recording to your camera roll.
Camera Roll
Tapping this button (indicated by the play arrow) will open your camera roll where you can view, delete or share your recordings.
The camera roll will also contain any photos and videos you’ve taken in your phone’s native camera app.
Toolbox
Tapping the Toolbox menu (indicated by the arrow) will expand it to reveal further menu options.
Flash
Toggle this setting in order to use your phone’s torch to light up dark scenes or subjects. When in Auto mode, the flash will engage as soon as you hit record if the scene you’re shooting is dark enough, but it won’t engage if the scene gets darker while you’re already recording.
Countdown Timer
With this feature, you’re able to set a timer that will delay your recording by a set amount from when you hit the record button – this is ideal for situations where you need time to set yourself up before the recording starts. Tap this setting to cycle between 3, 5 or 10 second delays, or turning the timer off.
Combined or Separate Files
When in dual camera mode (see below), you’re able to record footage from each of your cameras into separate files or a single combined file.
Information
In this tab, you can access app information, help, and other resources such as the privacy policy.
Video Settings
RØDE Capture features a number of toggle controls for quickly changing the quality and size of your footage. All of these settings will affect the video quality, aspect ratio and file size for both cameras.
Framerate
Tap this control to toggle between 24fps, 30fps and 60fps (frames per second). Generally speaking, shooting in 60fps will help reduce blur when you have a fast-moving subject and can produce ‘smoother’-looking footage, but lower framerates save on storage space and also have their own ‘look’ (24fps is the cinematic standard used in most feature films, for instance).
Recording Resolution
Tap this control to toggle between High Definition (720 x 1280 pixels), Full High Definition (1080 x 1920 pixels) and 4K (2160 x 3840 pixels). HD is perfectly acceptable if you only plan to view or present your footage on mobile devices, but recording in FHD (or even 4K) is recommended for content that may be viewed on larger computer monitors, TVs and other displays.
Aspect Ratio
Tap this control to toggle between 1:1 (square), 3:4 and 16:9 aspect ratios. This setting changes the shape of your video and affects both cameras in dual camera mode (see below).
Note
Due to hardware limitations, 4K60fps recording is only available on iPhone 12 and later devices. Some iPads and other iOS devices may not support all resolutions and framerates.
오디오 미터 및 마이크 설정
오디오 레벨 미터는 마이크 입력 볼륨을 나타냅니다. 레벨을 75% 정도로 유지하고 녹색 범위에 있도록 하세요. 가끔 주황색이나 빨간색으로 넘어간다면 입력 볼륨을 낮춰서 왜곡된 오디오 녹음을 피해야 합니다.
마이크 설정
마이크 아이콘을 탭하면 연결된 RØDE 마이크에 대한 완전한 제어가 가능합니다. 사용 중인 제품에 따라 입력 레벨, 하이패스 필터, 패드, 분리 또는 병합 녹음, GainAssist 등의 설정이 포함될 수 있습니다. 화살표를 탭하여 고급 설정(마이크가 제공하는 경우)에 접근할 수 있으며, 여기에는 고주파 부스트, 컴프레서, 노이즈 게이트, APHEX®️ Aural Exciter™️ 및 Big Bottom™️ 프로세서가 포함됩니다. 호환되는 RØDE 마이크는 다음과 같습니다:
- Wireless Micro
- Wireless ME
- Wireless GO II
- Wireless PRO
- VideoMic GO II
- VideoMic NTG
- AI-Micro
- NT-USB+
- PodMic USB
Note
If you are using a device not listed above, this menu will just offer control over input level.
Dual Camera Mode
Tapping on the ‘Dual Cam’ button allows you to select either of the dual camera modes – split or PiP (picture-in-picture) – as well as ‘off’ to return to single camera mode.
Split Mode
When in split mode, your primary and selfie cameras are shown in a side-by-side configuration, with each one taking up half of the overall frame. If you’re recording to separate files, each recording will be in the chosen aspect ratio (16:9, for instance) despite how it’s presented on-screen.
Picture-in-Picture Mode
Picture-in-Picture mode places the selfie camera in a small window in one of the four corners of your primary viewfinder. You can tap-and-drag this small window to relocate it to any of the four corners, even while recording.
Camera Swap
When in both split and picture-in-picture modes, tapping the swap camera button will change the position of the rear and selfie cameras.
Note
Due to hardware limitations, certain models of iOS devices, such as earlier iPads, don’t support dual camera mode.

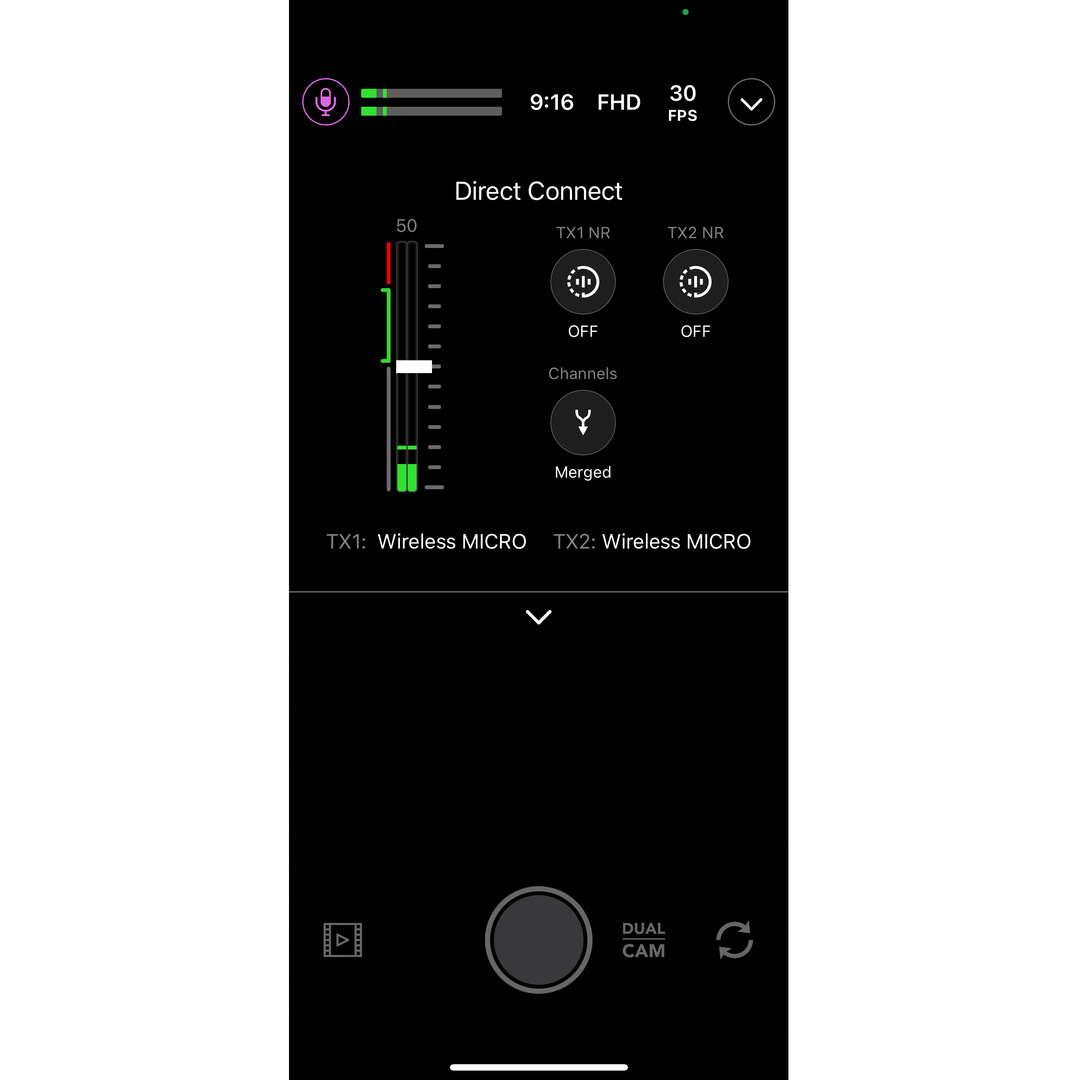

직접 연결
Direct Connect라는 새로운 앱 내 기능을 통해 두 개의 송신기(TX)를 Bluetooth®를 통해 직접 휴대폰에 연결할 수 있습니다. 최신 버전의 RØDE Capture가 설치되어 있는지 확인한 후, 앱 내 지침에 따라 송신기를 페어링하세요. 이 방법을 통해 송신기에서 직접 앱으로 녹음하고, 잡음 감소나 게인과 같은 송신기별 설정을 조정할 수 있습니다.
출력 게인: Wireless Micro의 볼륨 레벨을 조정하는 데 사용합니다.
분할 및 병합 모드: 병합 모드(기본값)에서는 두 송신기의 오디오가 병합되어 오디오의 왼쪽 및 오른쪽 채널로 전송됩니다. 병합 모드는 즉시 사용할 수 있는 비디오 녹화에 적합합니다. 분할 모드에서는 한 송신기의 오디오를 왼쪽 채널로, 다른 송신기의 오디오를 오른쪽 채널로 보낼 수 있습니다. 녹음 후 오디오를 편집할 계획이라면, 각 마이크의 볼륨 레벨을 개별적으로 조정할 수 있는 분할 모드를 사용하세요.
잡음 감소
이 기능은 배경 소음을 최소화하여 오디오 선명도를 향상시킵니다. 각 송신기(TX)별로 개별적으로 전환할 수 있으며, 세 가지 수준이 있습니다: OFF(감소 없음), LOW(최소 감소), HIGH(강한 감소). 이 설정은 수신기가 연결되어 있거나 송신기가 직접 페어링된 경우에 조정할 수 있습니다.
펌웨어 업데이트 (수신기 연결 필요)
Wireless Micro의 펌웨어 업데이트가 필요한 경우, RØDE Capture 앱을 열 때 프로세스를 안내하는 팝업 메시지를 받게 됩니다. 모든 송신기가 케이스에서 꺼내져 있고, 전원이 켜져 있으며 수신기에 페어링되어 있어야 업데이트가 가능합니다.
